THE PRODUCTS WE MANUFACTURE

Next to our 3d Clay print studio we have the manufacture, assembly, storage and packaging facility to build and ship our goods fast and reliable. Our products are hand built with great care.

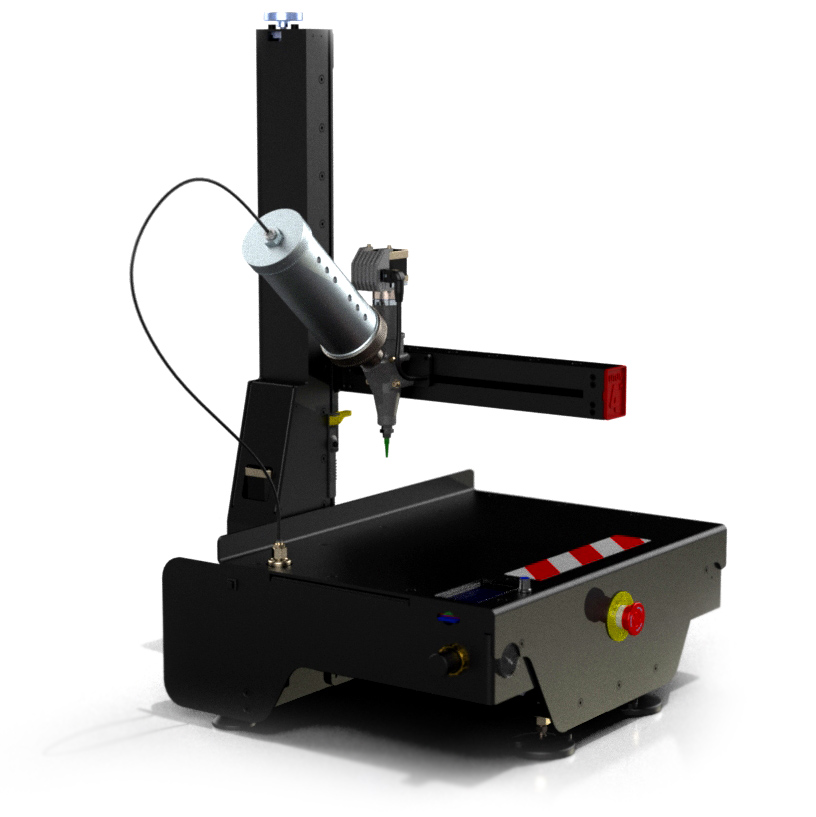

The LUTUM® 4M PRO

The LUTUM® 4M PRO Clay printer, the professinal clay manipulation tool for ceramists, researchers and educators. It is built for a startup budget and has a build volume of 25x25x40cm. The formfactor is similar to the other LUTUM® printers but smaller.

It is the perfect machine for robust production in a potters studio setting. This printer is also safe and easy to manage in a school environment as the mechanical movements are not powerfull enough to inflict injury and the formfactor has a small footprint. There is also no heat production and the cartridges are made of durable Aluminium aloy containing strong PolyCarbonate clay sleeves.

This machine has all the raw print benefits of its larger brothers,  but lacks the industry standard drive system in favour of  a more balanced price compared to the LUTUM 5 series machines.

The 4M PRO is equipped with a 4″ touchscreen, 32bit electronics, 8GB internal storage and Wi-Fi.

The affordable LUTUM® 4M

The LUTUM® 4M Clay printer, the most economic clay manipulation tool for ceramists, researchers and educators. It is built for a startup budget and has a build volume of 25x25x40cm. The formfactor is similar to the other LUTUM® printers but smaller. This printer is the current standard for 3D clay production and is well tested by the industry.

It is the perfect machine for smaller objects and general production in a potters studio setting. There no heat production and the cartridges are made of durable Aluminium aloy containing strong PolyCarbonate clay sleeves.

this machine has reduced sophistication, print capacity and ergonomics resulting in a more price competitive machine.

The 4M is equipped with a 2″ LCD, 8bit electronics and SD card reader.

The LUTUM® v4.6 , the perfect companion for the digital potter.

The LUTUM® 4.6 Clay printer, the most versatile clay manipulation tool for ceramists, researchers and educators. It is built for general usage and has an easy access interior for custom adjustments. This printer is the current standard for 3D clay production and is well tested by the industry.

It is the perfect machine for intermediate use and general production in a potters studio setting. The printer is safe to use in a school environment as the mechanical movements are not powerfull enough to inflict injury. There is also no heat production and the cartridges are made of durable Aluminium containing strong PolyCarbonate clay cartridges.

The 4.6 is equipped with a 5″ touchscreen, 32bit electronics, 8GB internal storage and Wi-Fi.

The LUTUM® 5M clay System a small heavy duty printer for scientific or production use.

A Professional M series printer is also available. It is equipped with a Stainless Steel worktop, an easy access interior for custom adjustments, heavy duty drivers and motor for the lateral Y-axis movement and fast 32bit hardware with 32GB internal storage and an integrated 4″ touch screen. This printer is intended for a more professional use. There are more adjustable system options and a Stainless Steel worktop provides a durabe surface for extended use.

The infrared height sensor can scan your print surface and compensate the nozzle for perfect printing and clay deposition.

The LUTUM® 5 , the powerful companion for precision and reliability.

Our next generation Industrial version of the LUTUM® is the 5. Like his smaller brother it is equipped with a Stainless Steel worktop, an easy access interior for custom adjustments, heavy duty drivers ánd motor for the Z-axis and Y-axis movement, all axis have high presision HIWIN rails and this machine is equipped with a 32 bit electronics board with wifi access and a 7″ touch screen. All possible options  are incorporated. This printer is intended for Laboraty or higher precision clay production. It also suits a more demanding printing environment where many printers are used for mass production of ceramics.

LUTUM 5

VORMVRIJ® Parts and accessories for optimal functionality and improved workflow.

For easy filling of the Clay Cartridges we provide custom made Pugmill Adapters.

Pugmill adapter for LUTUM cartridges

BOOSTER KIT for LUTUM 4.5 and 2.x / 3.x

Are you working with a 2019 to 2020, LUTUM 4.5 ? You can now upgrade the brain and control box of your printer to make it our current LUTUM® 4.6.We developed a KIT everybody can install into their LUTUM printer.

Are you working with a 2015 to 2017, LUTUM 3.x (red or black) or LUTUM 2.x ? We did not forget you, you also upgrade the brain and control box of your printer.

In the early days we had quite a few itterations in printer development and while most of the wiring is identical from system to system, we still customize every kit to reflect your specific configuration.

Please check the web store for information!
