Description

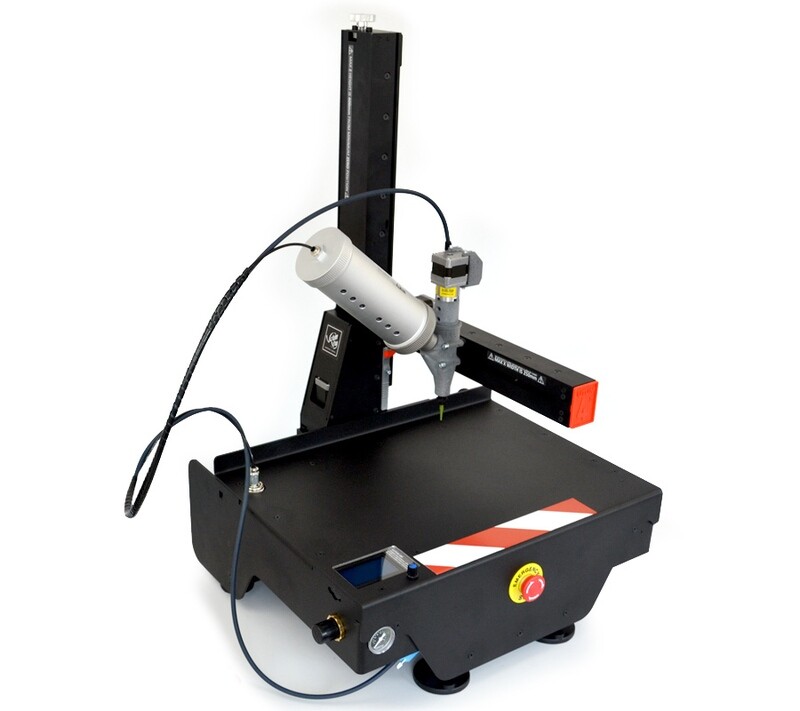

The LUTUM® 4Mb | 3D CLAY PRINTER
The 4M has a lead time of 30 working days.
The LUTUM 4Mb model includes:

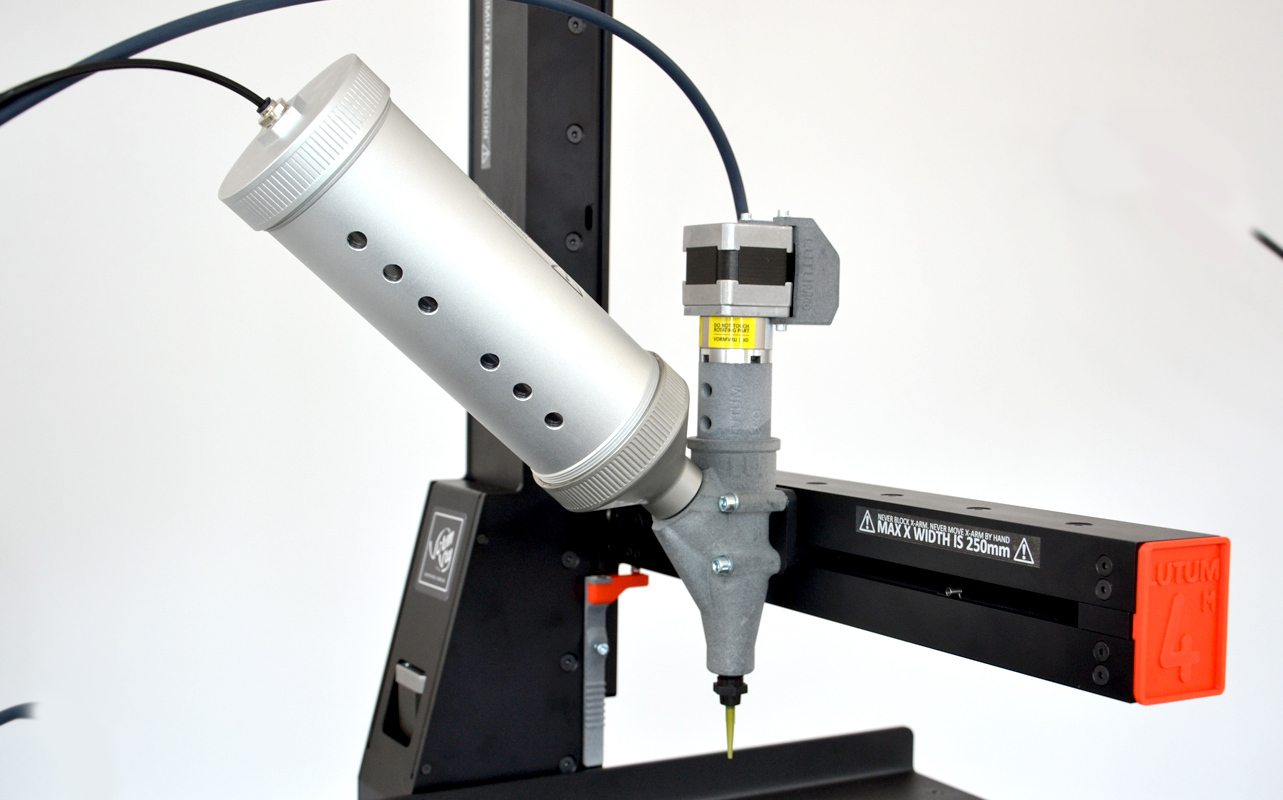

– Nylon eco extruder.
– 1x Size S cartridge and one extra empty clay sleeve.

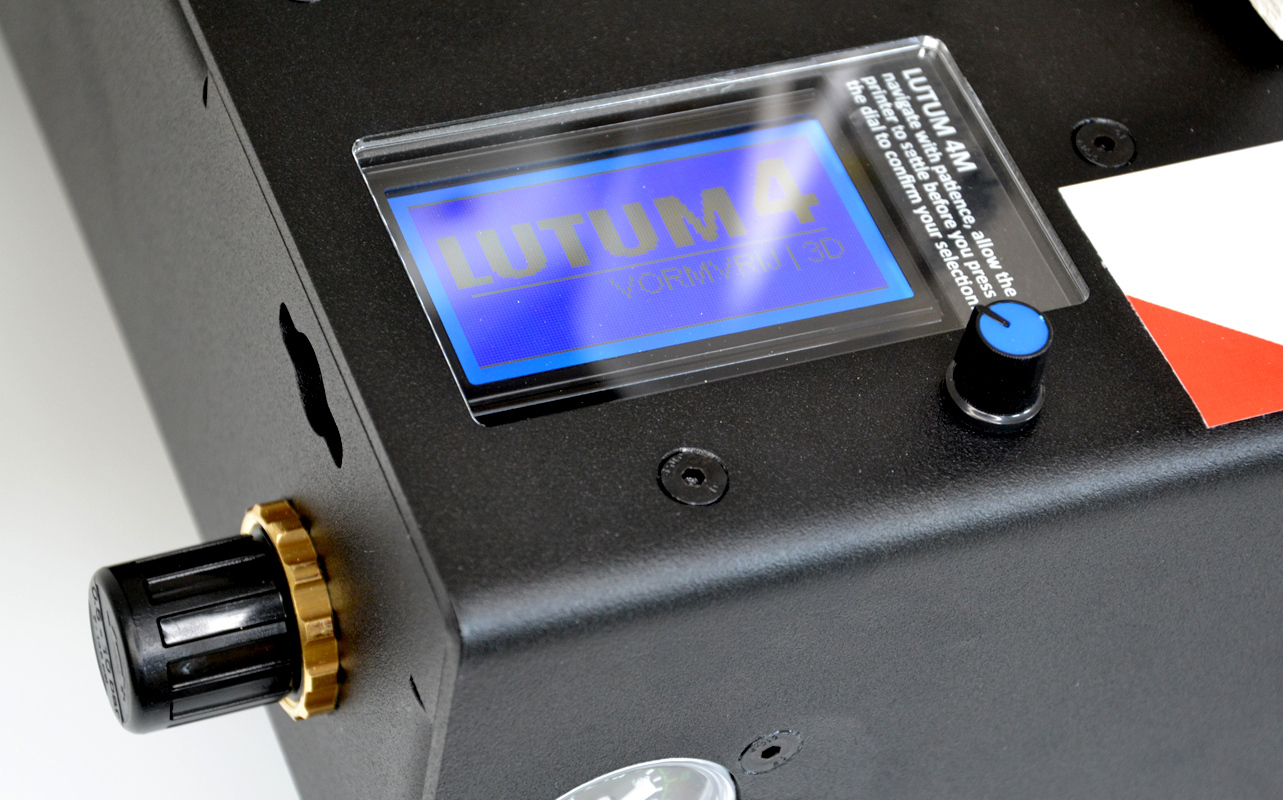

– The 4Mb runs on 32bit electronics with an integrated 4.3″ LCD screen.
General specifications:
– Robust Mechanics similar to our high end LUTUM versions..
– fully powder coatet or anodized for easy cleaning.
– Moving parts like spindels and belts are protected or hidden inside the construction.
– internal power is 24v.
– The printer can print grogged clay up to 0.2mm at 25%.
– the build envelope size is 25x25x40cm – XYZ.
– the LUTUM extruders have excellent start stop and retract behaviour.
– the printer allows accelerated/decellerated movements and extrusion.
You receive a free booster kit upgrade with your purchase if you select the option!:
– BOOSTER KIT 4M with 100% discount

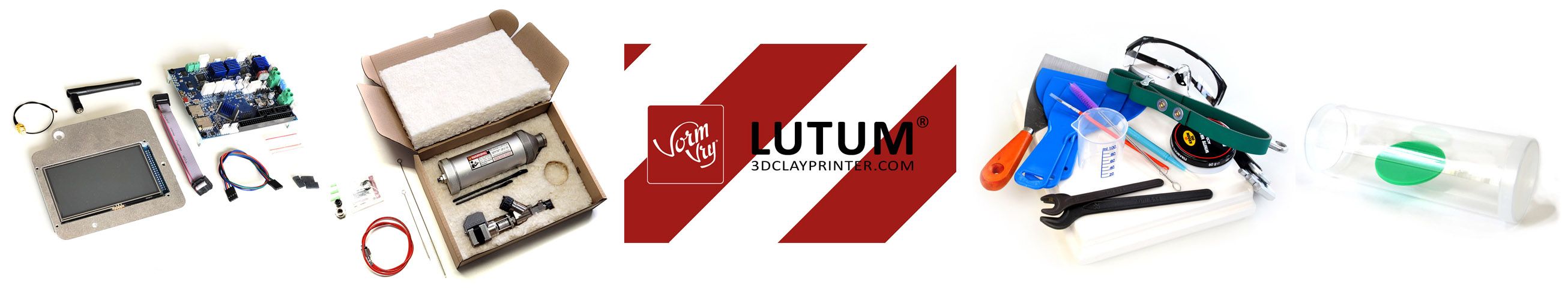

Upgrade possibilities:
– v10 stainless steel extruder, including 1 Large Cartridge sleeve en clay tube.
– Full Toolset to complete the package.
– extra cartridge sleeves

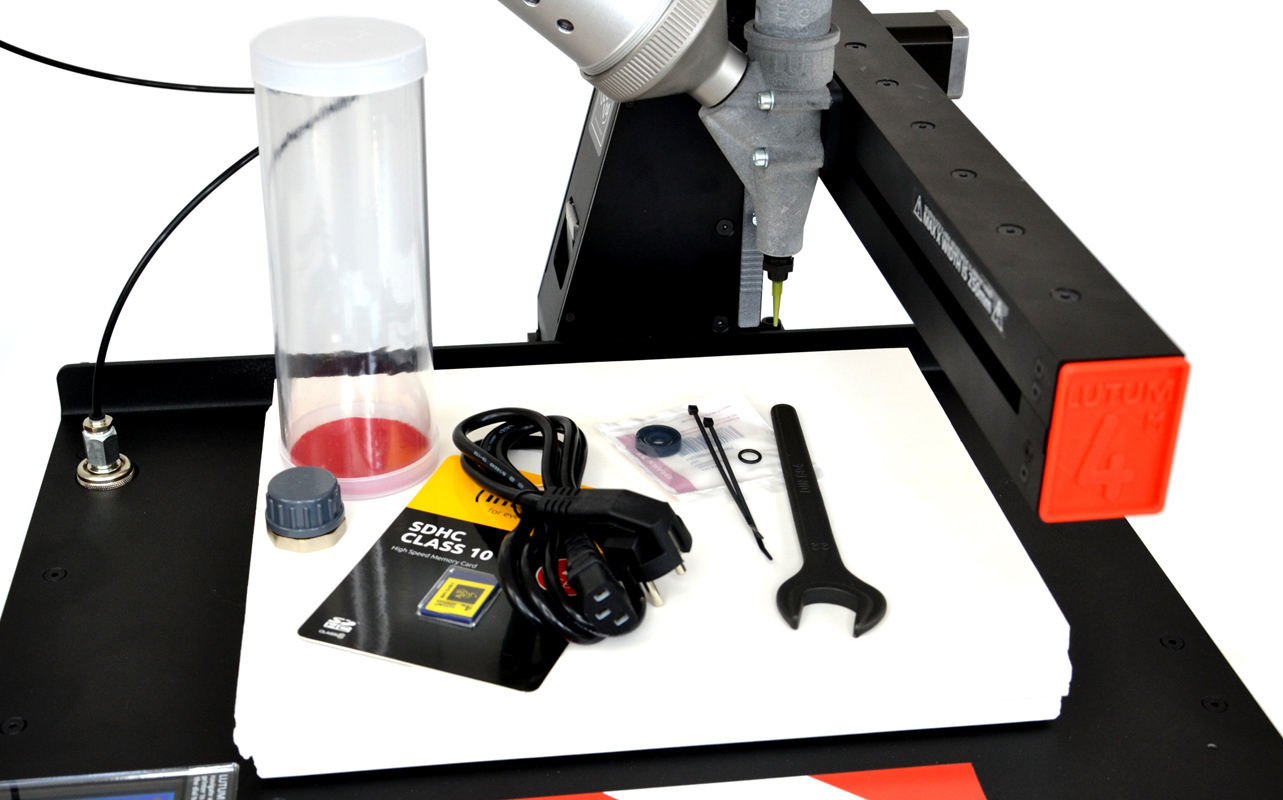

Included in the standard package:
1. LUTUM 4Mb printer
1. Eco Extruder
1. SD card with instructions and test files
1 metal cartridge set S (700cc)
1 Poly-Carbonate sleeve to store prepared clay
1 extra Eco Extruder pressure seal set
1 extra Auger seal
Euro Power cable
no.22 Key to open the cartridge
±25x25cm plaster print bed.
This printer needs 6 bar air pressure to run, make sure you have a regulated air supply where you setup the machine. The air must be clean, oil free and dry. Make sure your installation has a water separation unit attached between the compressor and the printer. Damage to the pressure regulator of the printer due to oxidation is not covered by our warranty.

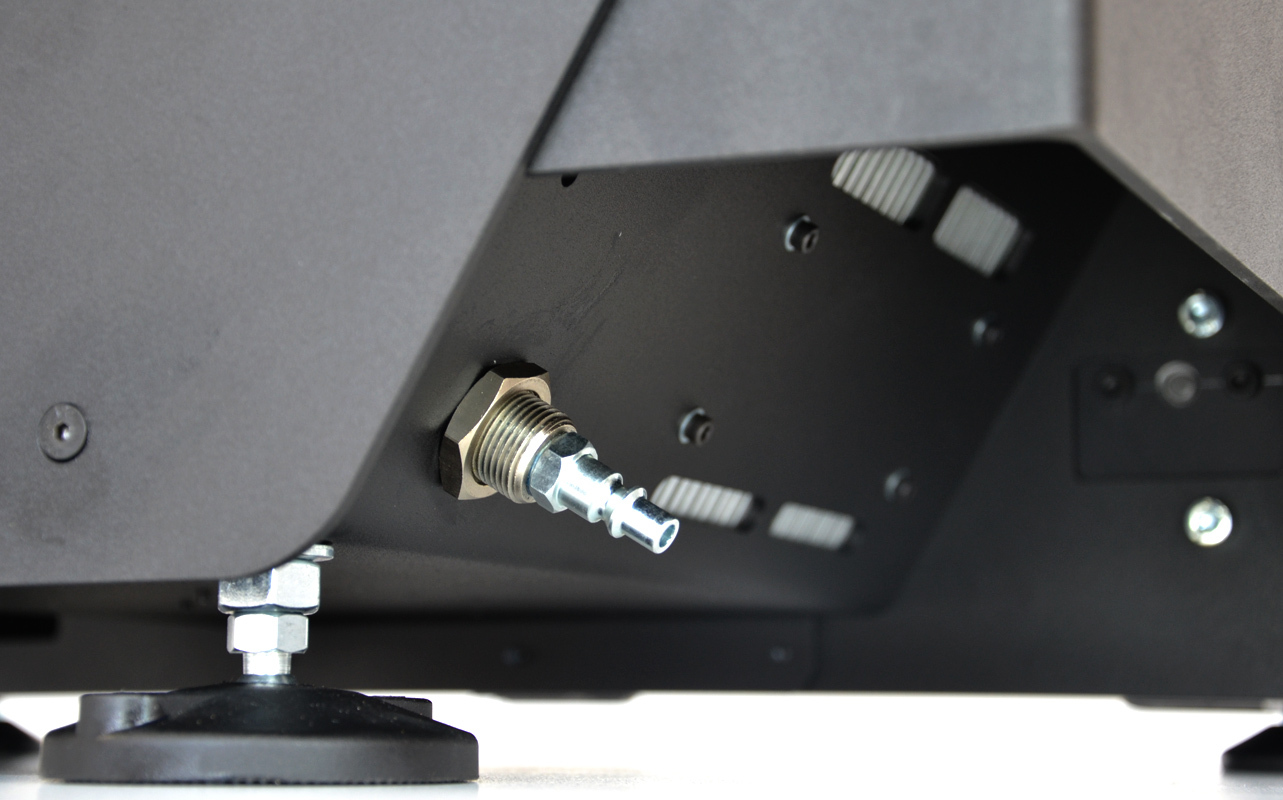

The printer supply air coupling is of the standard 14Ka male type (Orion).
Filling of the cartridges can be done by hand.
Properly prepared clay gives best print results.
When using more sleeves for printing larger amounts it is advised to fill cartridges with a pugmill.
You can a order an adapter for your pugmill to fill the PC sleeves.
Please contact us for further details on delivery schedules and other questions you might have
Technical specifications:
Technology: LDM
Printing volume: diameter 250mm x250 x H400mm
Nozzle diameter: 4mm standard (other sizes possible)
Layer resolution: min 0.5mm – max 3mm.
8bit version Max speed: 70mm /s with acclerations of 150mm/s2 stanadard.
Materials: earthenware, stoneware etc.
TOLERANCE
Print bed deviation 1 mm over max distance
First layer 0.3mm / 100mm
Subsequent layers 0.1mm/250mm
EXTRUDERS
Nylon Eco Extruder standard
Standard: nozzle diameter 4mm
In package: 4mm
SOFTWARE
Operating systems: WIndows, Mac, Linux
Software slicing: Prusa Slicer (recommended) – others are possible
File type: .stl, .obj, .gcode,
INTERFACE
8b version :SD Card – LCD screen – USB
PHYSICAL DIMENSIONS
Printer dimensions: 58x51x87 cm
Printer weight: 60kg
TECHNICAL INNOVATIONS
Easy clay control with the Eco Extruder
Accelerated performance delivers short print times with maximum printspeeds
Integrated air pressure control
Heavy built minimal vibration machine
Easy to use Interactive extrusion and speed controls
Print up to 40 cm tall!
Feb 2025
