LUTUM® 4.6 | 3D CLAY PRINTER

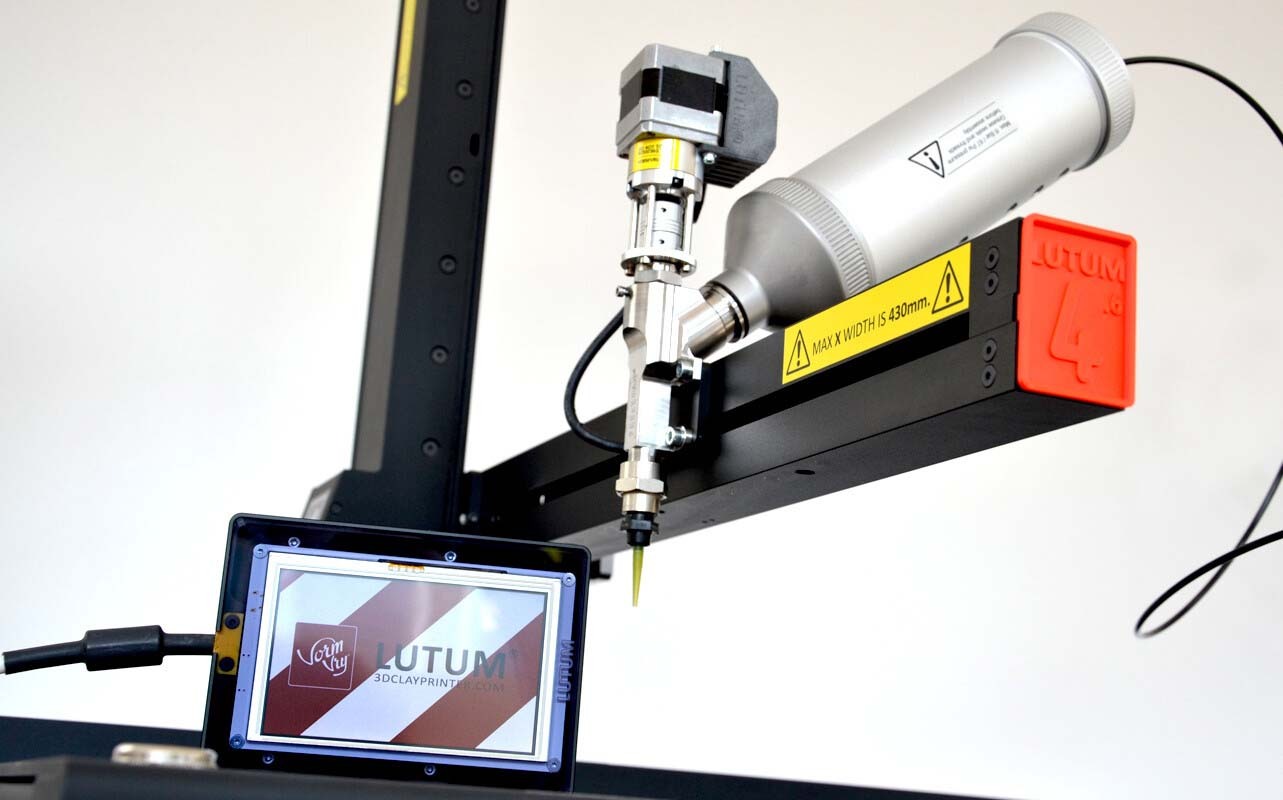

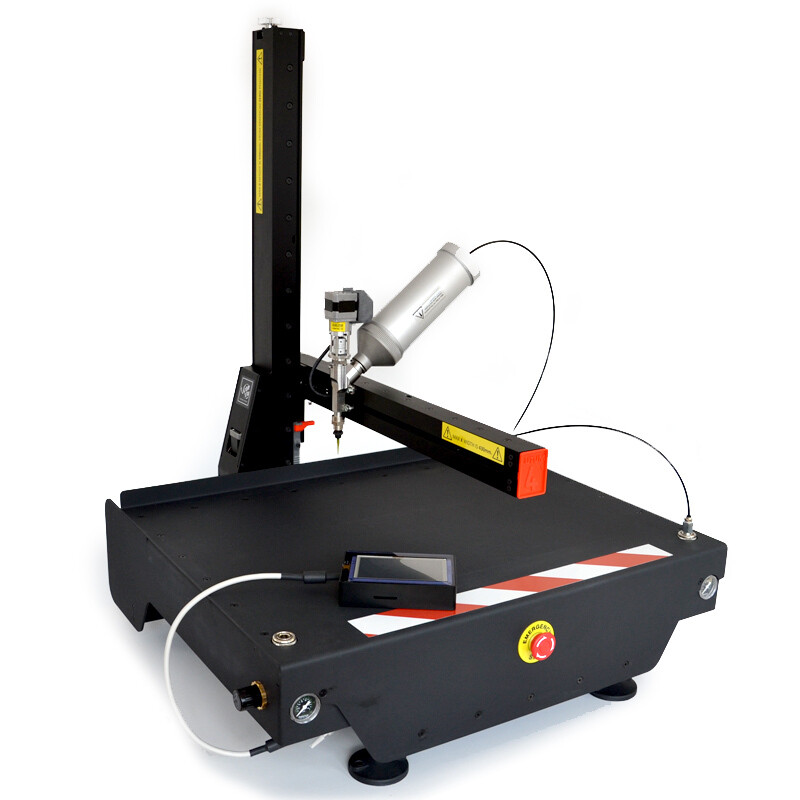

The LUTUM v4.6 standard setup*
*pictured is the v10 extruder upgrade.
Lead time is currently 8 weeks.
GENERAL SPECS:
What is in the standard package:
LUTUM v4.6 printer

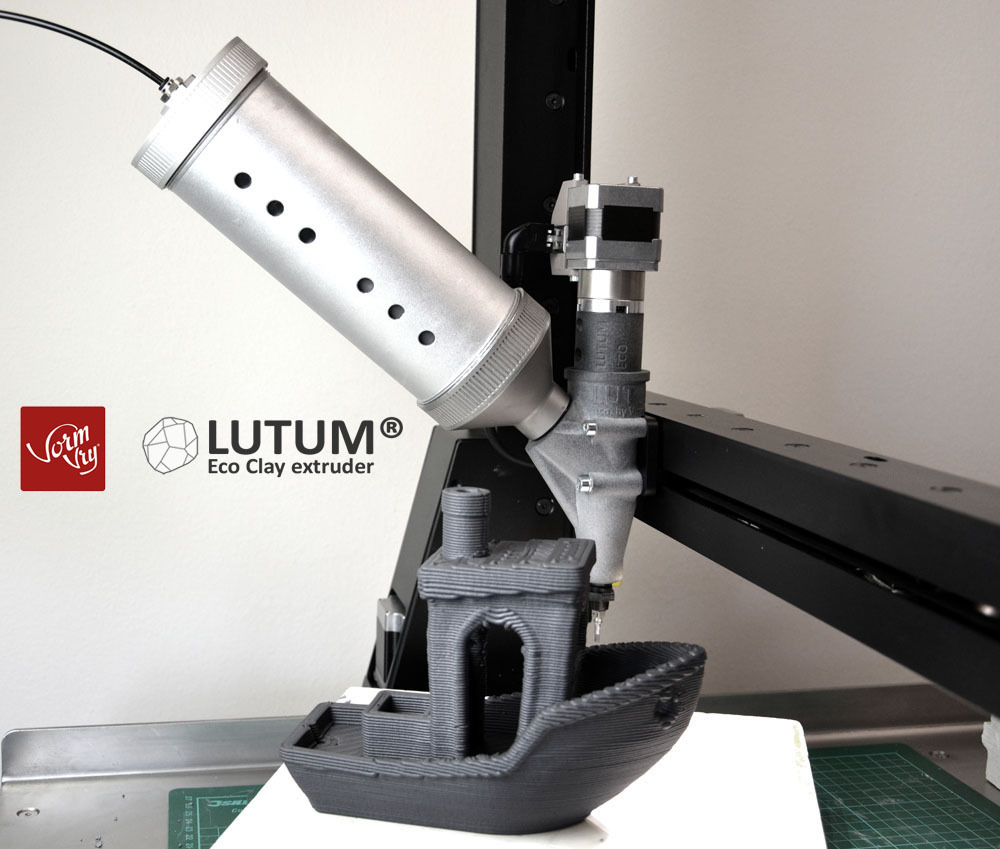

Eco Extruder

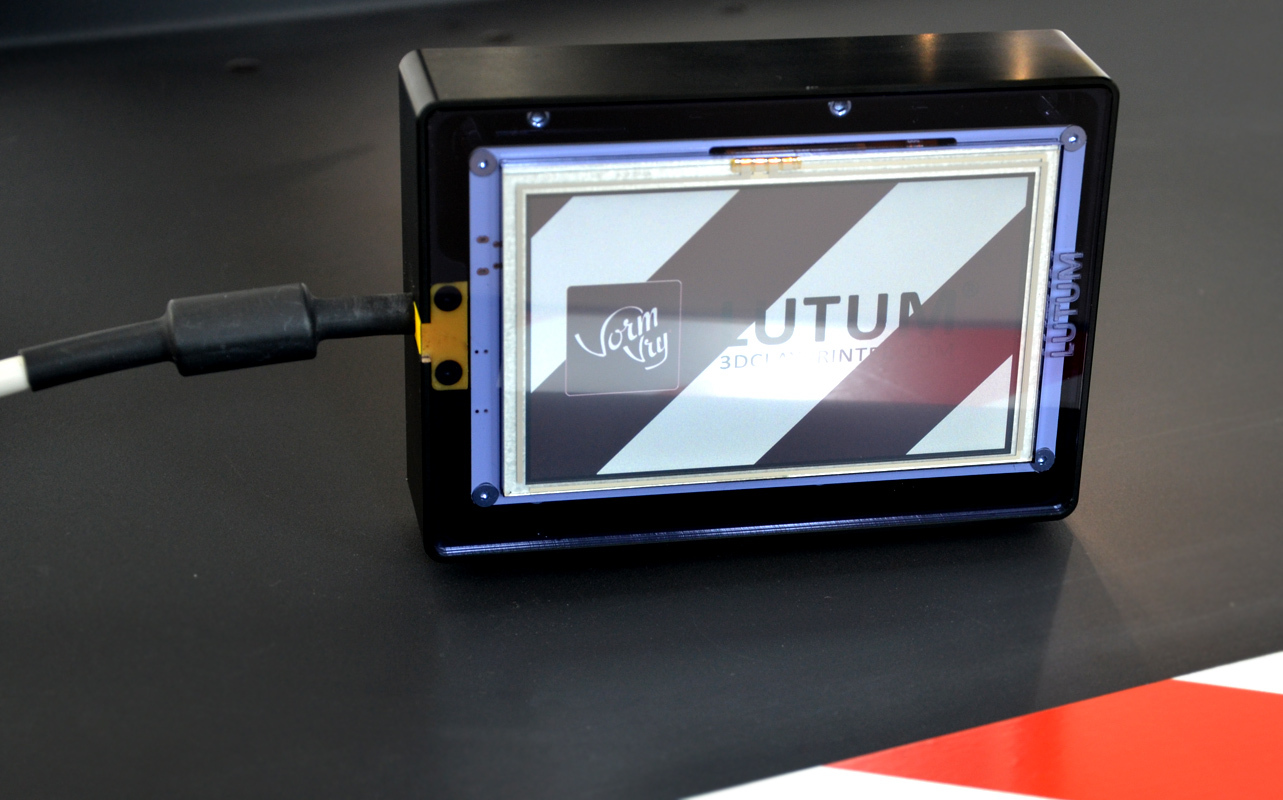

external control box with 5″ touch screen
basic nozzles
2 metal cartridge set S (700cc)
1 PC-S sleeve to store prepared clay.
1 extra eco extruder seal set
power cable.
minimum necessary tools
Large plaster printbed
small plaster printbed
note: The standard printer has a nylon extruder, this extruder can only hold the S (700cc/1kg) cartridge
– UPGRADE to v10 extruder :
1 Stainless steel v10 extruder (instead of eco extruder)
1 metal cartridge Alu sleeve size L(1400cc) + 1 PC-L
2 sets of spare seals for Auger and motor (9pcs total)
1 extra Pressure seal for V10 extruder
1 15mm spanner
– UPGRADE to v10 extruder + Dual extruder:
1 Stainless steel v10 extruder (instead of eco extruder)
1 Stainless steel v10 Dual extruder with mirrored inlet.
2 metal cartridge Alu sleeve size L(1400cc) + 2 PC-L
2 sets of spare seals for Auger and motor (9pcs total)
2 extra Pressure seal for V10 extruder
1 15mm spanner
– UPGRADE to v10 extruder + IR Height sendor :
1 Stainless steel v10 extruder
1 metal cartridge Alu sleeve size L(1400cc) + 1 PC-L
2 sets of spare seals for Auger and motor (9pcs total)
1 extra Pressure seal for V10 extruder
1 15mm spanner

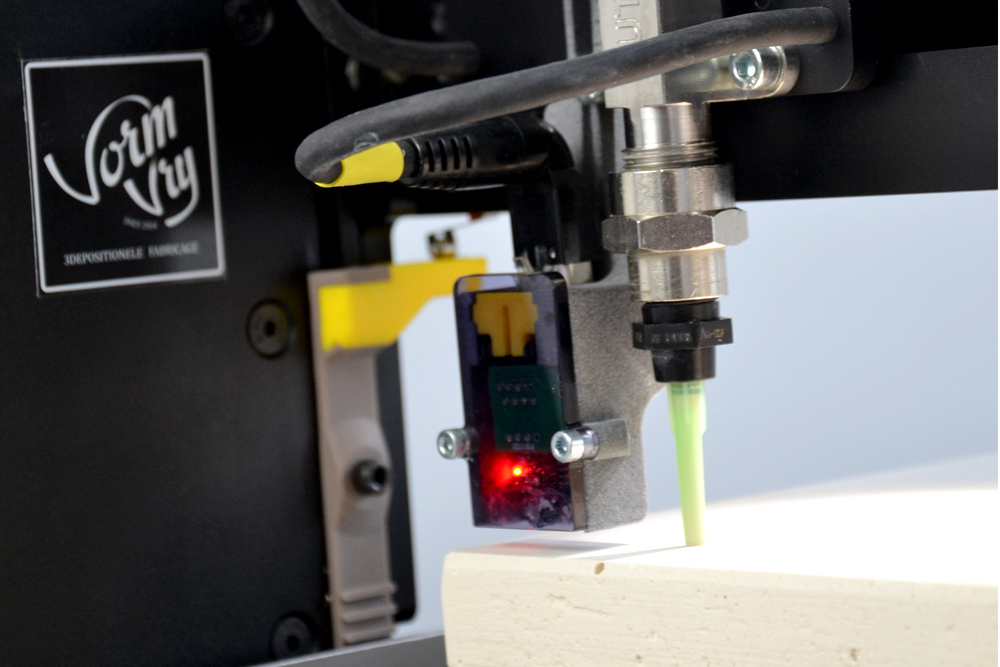

1 IR Height sensor
1 IR cable
1 IR sensor lenghtner
note: With this Upgrade, the DUAL extruder option is no longer available as the internal wiring will be adjusted for this configuration.
– UPGRADE with the Integrated SD card slot :

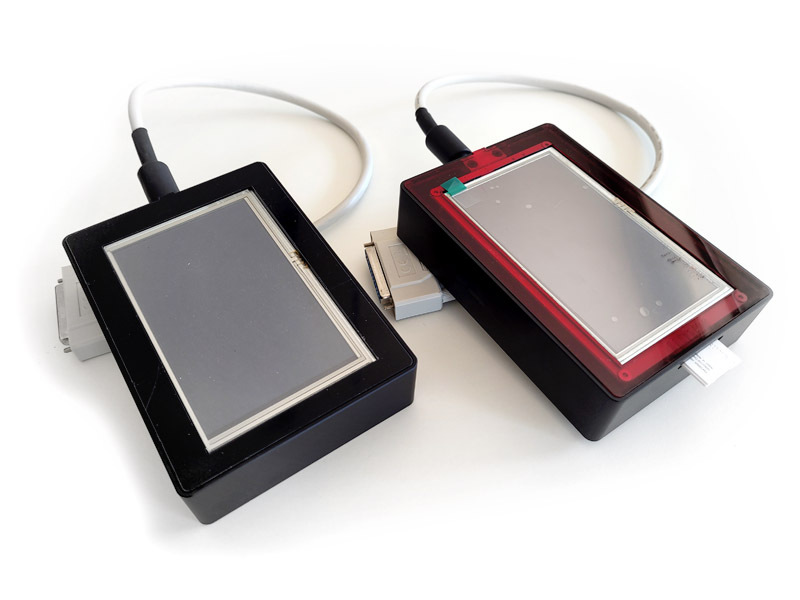

1 external Controlbox with 5″ touchscreen and SD card slot
4GB SD card with testprints
– INCLUDE the Pugmill Adapter
1 Pugmill Adapter to fill Small and Large Sleeves

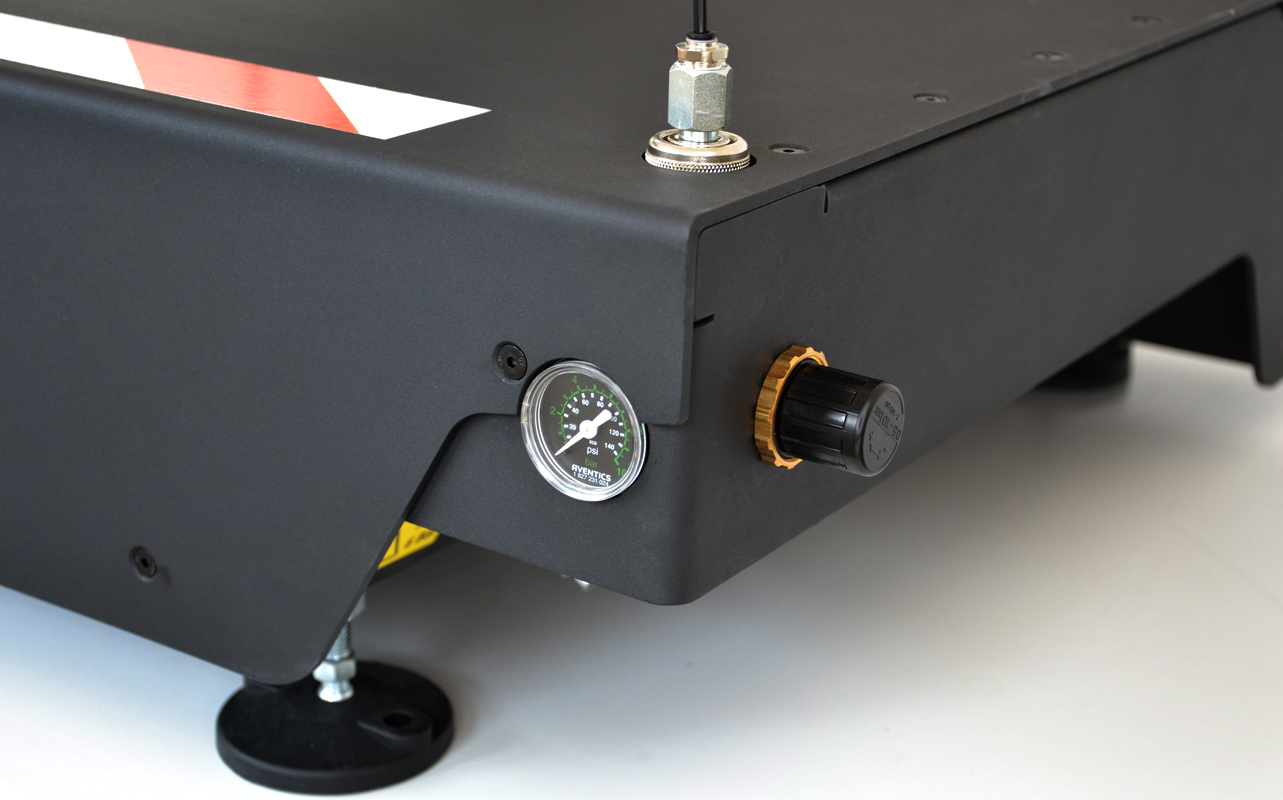

This printer needs 6 bar air pressure to run, make sure you have a regulated air supply where you setup the machine. The air must be clean, oil free and dry. Make sure your installation has a water separation unit attached between the compressor and the printer. Failure of the regulators due to oxidation is not covered by our warranty.
The air connection we use is the Swedisch ORION type 5.5 mm. (14Ka)
Filling of the cartridges can be done by hand.
Properly prepared clay gives best print results.
When using more sleeves for printing larger amounts it is advised to fill cartridges with a pugmill.
It is advised to fill cartridges with a pugmil,
Properly prepared clay gives best print results.
