Description
Micro Nozzle Pack
This package can be used with the LUTUM® extruders. With it you will be able to print very fine structures. Make sure you use the correct slicer settings and clay viscosity for these nozzles to work.
The measure is given in G (Gauge) and in effective Outer print Diameter.
The Outer print diameter is the minimum width you can print with the nozzle. When over extruding you can increase your deposition up to 50%.
The pack includes:
| 1. | polypropylene adapter, black* | |||||||
| 5. | Lime | G10 | Ø | 3.8mm | nozzle | |||
| 5. | Olive | G14 | Ø | 2.2mm | nozzle | |||
| 5. | gray | G16 | Ø | 1.9mm | nozzle | |||
The black fittings are molded and have good chemical resistance. Make sure you have a clean, clay- and dust-free brass fitting before you screw this black polypropylene adapter to the extruder. this will prolong the life of this part. The tapered tip series is designed with a double helix thread to provide secure connection to the adapter. the smooth internal path design reduces turbulence in the clay flow and ensured a nice and smooth placement. You can cut the tip to get a different extruding width.
For professional use there is a chrome plated brass variant of the Fitting. You can add it to your standard order. This fitting has less wear and lasts longer. it’s slightly heavier and sometimes needs a little extra pressure for good print results.
You can also order a separate set of nozzles, they come in increments of 20.
| 20pcs Lime nozzle* | 20pcs Olive nozzle* | 20pcs Gray nozzle* |
 |
 |
 |

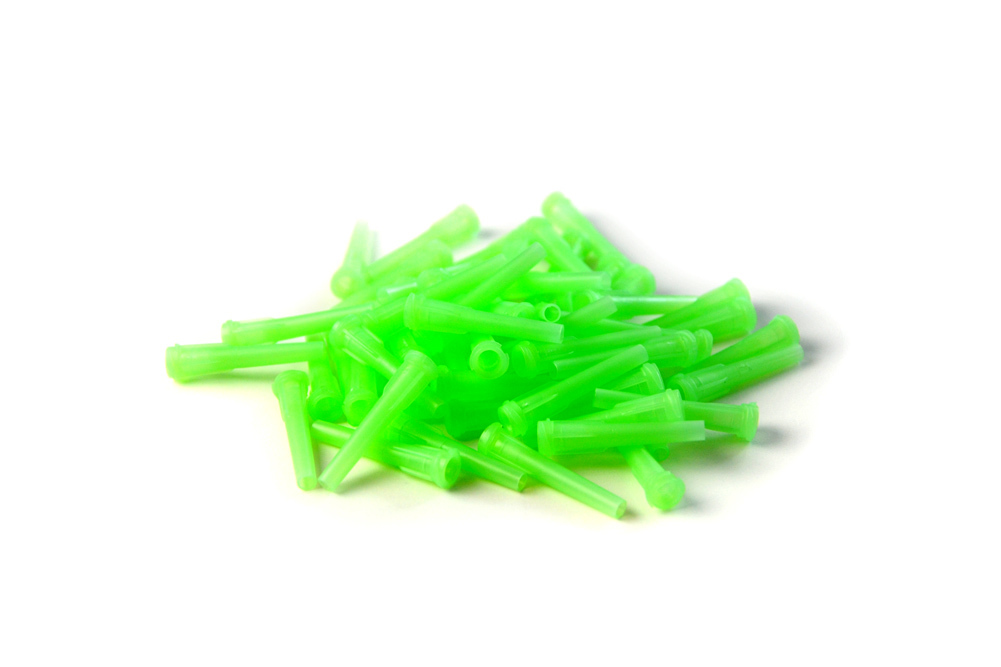

*note that the amounts pictured are more than 20 pieces.
